Planetary Gear Stepping Motor 7

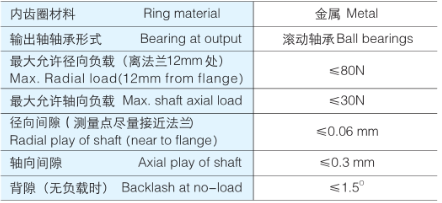

Ring Gear Material：
42JXGTS200K/42STH：Metal
Diameter：37mm OD Planetary Gearbox
Permissible Load Range：6N.m~20N.m

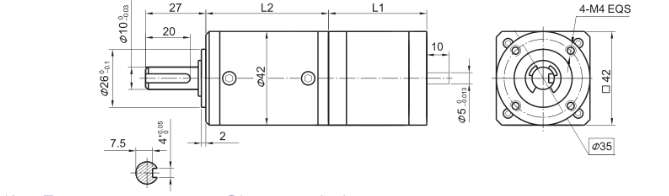

安裝尺寸 Dimensions
行星齒輪減速器 Planetary Gearbox

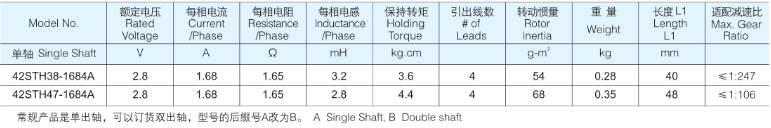

42STH 混合式步進電機性能 42STH Hybrid Stepping Motor Specifications

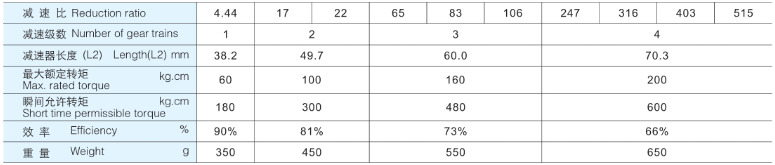

42JXGTS200K行星減速器性能 42JXGTS200K Planetary Gearbox Specification

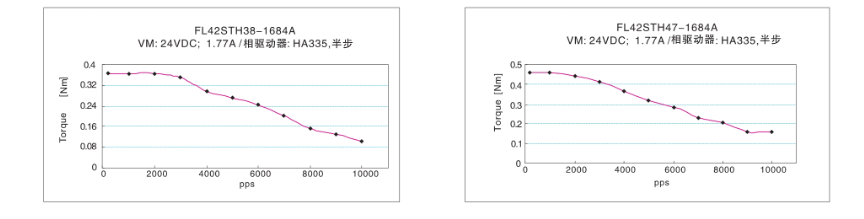

矩頻曲線 Frequency-torque Characteristics
