BLDC Planetary Gear Motor 8
Ring Gear Material：
42JXGT200K/42ZWNP59：Metal
Diameter：42mm OD Planetary Gearbox
Permissible Load Range：2N.m~20N.m
3 phase 4 poles brushless DC motor ，with external driver

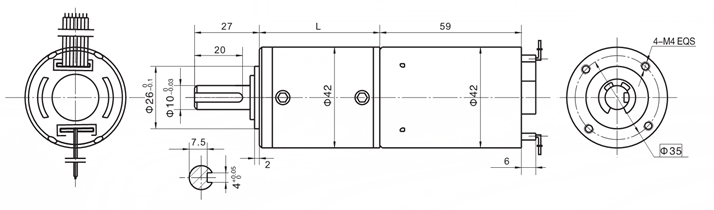

安裝尺寸 Dimensions

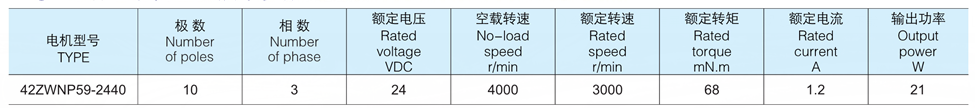

電動機主要技術參數 Motor Technical Data

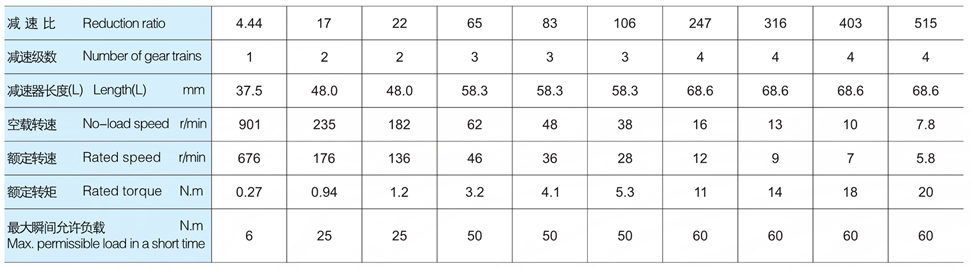

齒輪減速電機主要技術參數 Gear Motor Technical Data
型號：42ZWNP59-2440（42ZWNP59-2440 BLDC Motor）

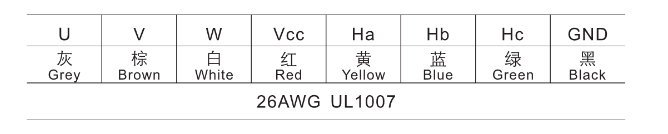

接線方式 Wire Diagram
